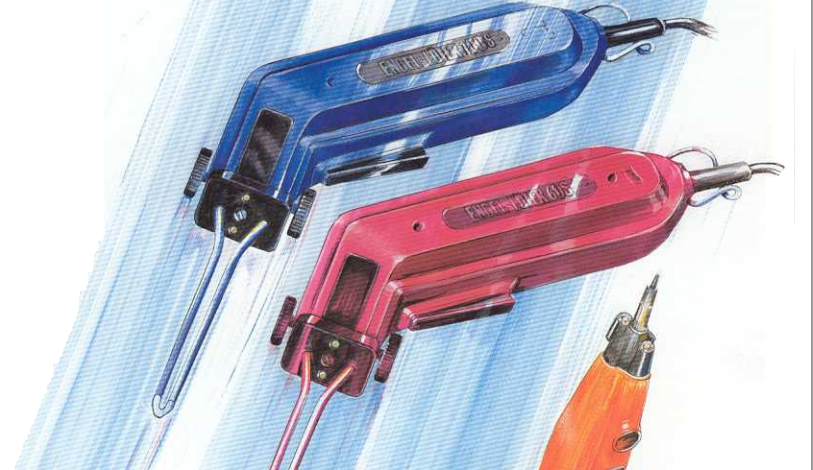

The internationally approved and popular ENGEL soldering guns are high quality products which have been constructed with many years' experience. ENGEL soldering
units meet both the high standard requirements of trade and industry as well as those of the amateurs and hobby electronics where there are required soft solder operations
from time to time.
Due to the quick preheating time - direct heating of the soldering tip - and quick cooling-off of the soldering tip, our soldering pistols are especially suitable for single joints as they are effected every day in the service business. The ENGEL soldering units have an energy saving function as the soldering tip is only heated as long as the operation switch is pressed down. This method also allows a certain temperature regulation.
The operating switch cannot be locked while the unit is switched on. The units are equipped with a safety transformer which guarantees a high electric security. Further they are equipped with a built-in or attachable lighting to illuminate the soldering spot free of shade. All soldering tips can be exchanged easily. Our soldering units and the various shaped tips are suitable for multiple laboratory work, repair, assembling and hobby craft operations,f. i. such as at printed circuits or even at cross sections up to 12 mm2.
Our off the line, cordless, rechargeable ENGEL Soldering Unit B 50 is especially suitable where no mains supply is available or where a connecting cable would be disturbing. With this unit all soldering problems are handled easily.Soldering operations can be effected with this distinguished model absolutely potential free as required at very delicate electronic components. All our units impress due to their attractive design, excellent handiness and solid construction. For operations with our units we recommend soft solder wire - 60 % tin,40 % lead with flux F-SW 26 as per DIN 8511.
恩格尔焊枪经由多年的经验设计而成，品质优良，受到国际认可和欢迎。恩格尔焊枪能够满足工业和贸易的高标准需求，同时能够满足业余电子爱好者时常的焊接需求。
由于预热时间短，焊头被直接加热，且能够快速冷却，所以我们的焊枪非常适合单接头的焊接，单接头在服务行业影响很大。恩格尔焊枪还有节能装置，因为只有按下操作开关时焊头才会加热，这个原理同时保证了焊枪能够进行特定的温度调节。
当焊枪开启时操作开关不能被锁定。焊枪的变压器安全性能高。更进一步焊枪上配备了内置的或可连接的灯泡，从而使焊接点无阴影。所有的焊头便于更换。我们的焊枪和各种形状的焊头适用于多种实验操作、维修、安装及爱好者的操作，例如在印刷电路或者在12mm2的横截面上进行操作。
我们的无线的、可充电的焊枪B 50非常适用于没有电源供应或电源线会产生干扰的环境进行操作。这款焊枪可以轻松解决所有的焊接问题，同时能够完全按照要求在精致的电子元件上进行焊接操作。我们的焊枪由于设计新颖、异常轻巧、结构坚固而能给客户留下深刻的印象。
Model 100 S
Article-No.: 71 31 121 000 (230 V)
7133001000 (110 V)
Voltage：110V ,6 0Hz or 230V ,50Hz
capacity :80W
heats up in 6 secs.
light fittings
Protection class II (shockproof)
weight:1000g (total weight with packaging1160g )
Contents:
l ENGEL Soldering Gun
l tip 100 WB
l coil solder approx. 4 g
l brush (to clean tip)
Please note: Also available in a handy suitcase.

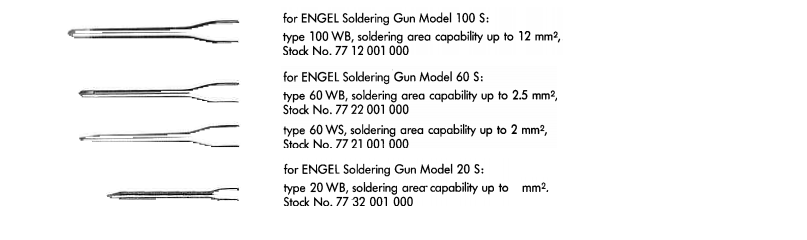

Spare Soldering Tip and blade for ENGEL-Soldering Gun Model 100S
| Soldering tip type 100WB Soldering area up to 12mm2 |
Model 100s
产品编号：7131121000 (230 V)
电压：230V,50Hz
功率：80W
6s内加热
light fittings
二级保护（防震）
重量：1000g（Carton packaging 1210g,tool case 1430g）
标准配置：
1个恩格尔焊枪
1个焊头，型号为 100WB
1卷焊料，约4g
1个刷子（用来清洁焊头）
请注意：也可以放在手提箱中，便于携带。

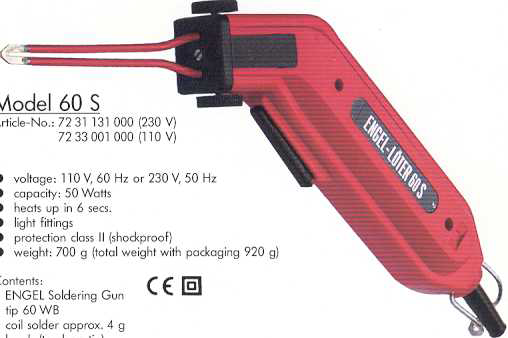

Model 60 S
Article-No.: 7231131000 (230 V)
7233001000 (110 V)
voltage: 110 V, 60 Hz or 230 V, 50 Hz
capacity:5 0 Watts
.heats up in 6 secs.
light fittings
Protection class II (shockproof)
weight:700g (total weight with packaging 920 g)
Contents:
1 ENGEL Soldering Gun
1 tip 60WB
1 coil solder approx. 4g
1 brush (to clean tip)
Model 60 S
产品编号：7131131000 (230 V)
电压：230V,50Hz
功率：50W
6s内加热
light fittings灯饰配件
二级保护（防震）
重量：700g（加包装920g）
标准配置：
1个恩格尔焊枪
1个焊头，型号为 60WB
1卷焊料，约4g
1个刷子（用来清洁焊头）

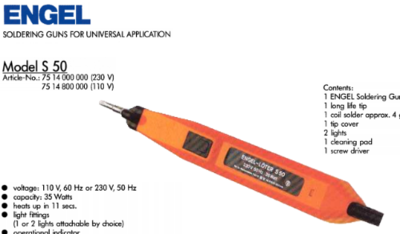

ENGEL Soldering Gun Type S 50 |
Voltage: 230V; 50 Hz
Power: 35W
Heats up in 11 secs
Light fittings(1 or 2 lights attachable by choice)
Operational indicator
Tip temperature approx. 350°C
Long life tip protected against erosion and oxidation
Protection class II (shockproof)
Weight: 320g (weight with carton packing 520 g, with plastic case 650 g)
Contents：
1 ENGEL-Soldering Gun
1 Soldering Tip Type B 50 D
1 Coil solder approx. 4g
1 Tip cover Type B 50 T
2 Lights Type B 50 E
1 Cleaning pad Type B 50 R
1 Screw driver
1 Operating instructions
1 Carton packaging (also available in a plastic case)
Model S 50
产品编号：7514 000 000 (230 V)
电压：230V,50Hz
功率：35W
11s内加热
light fittings灯饰配件(可选择附加带一个或两个灯泡）
作业指南
焊头温度约350°C
焊头抗腐蚀及氧化，使用寿命长
二级保护（防震）
重量：320g（纸箱包装毛重520g，塑料箱包装毛重650g)
标准配置：
1个恩格尔焊枪
1个焊头，型号为 B 50D
1个焊头外壳，型号为B 50T
2个灯泡，型号 B50E
1个擦拭垫，型号B 50R
1个螺丝刀
1份使用说明书
1个纸箱包装（也可以选择塑料箱包装）

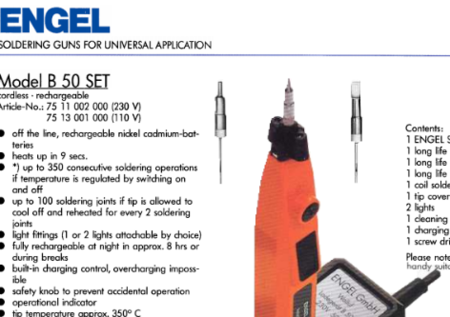

ENGEL Soldering Gun
Type B 50 Set
Off the line, rechargeable Ni-MH-Batteries
Off the line, 可充电的镍氢电池
Heats up in 9 secs.
9s内加热
*) Up to 350 consecutive soldering operations 最多能够持续350次焊接操作
Up to 100 soldering joints if tip is allowed to cool off and
reheated for every 2 soldering joints
如果每两个焊接接头之间能够冷却焊头再重新加热的话，能够焊接100个焊接接头
Light fittings (1 or 2 lights attachable by choice)
灯饰配件（可以选择1个或两个灯泡）

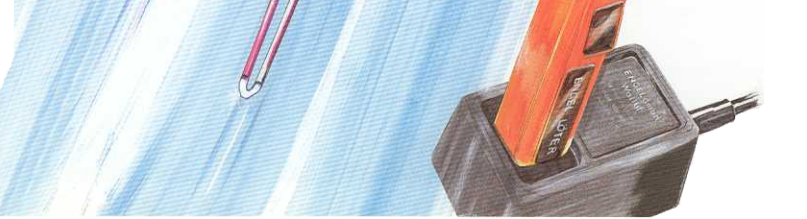

Fully rechargeable at night in approx. 8 hrs or during breaks
夜间或休息是大约8小时可充满电
Built-in charging control, overcharging impossible
内置充电控制，不可能过度充电
Safety knob to prevent accidental operation
安全按钮可以阻止误操作
Operational indicator
操作指南
Tip temperature approx. 350°C
焊头温度可达350°C左右
Tip protected against erosion and oxidation
焊头抗腐蚀、抗氧化
No disturbance to external voltage while soldering
焊接时没有外加电压干扰
Weight: 160g (with carton packaging 510g, with tool case 890g)
重量：160g（加纸箱包装510g，加工具箱890g）
Contents
1 ENGEL-Soldering Gun
1 Tip
1 Tip
1 Tip
1 Coil solder approx. 4g
1 Tip cover
2 Lights
1 Cleaning pad
1 Charging unit
1 Screw driver 1 Operating instructions 1 Carton packaging (also available in a plastic case)
标准配置： | Type B 50 A
Type B 50 D
Type B 50 H
Type B 50 G
Type B 50 T
Type B 50 E
Type B 50 R
Type B 50 L |
1个恩格尔焊枪 型号为B 50A
1个焊头 型号为B50D
1个焊头 型号为B 50 H
1个焊头 型号为B 50G
1卷焊料，约4g
1个焊头盖，型号为B 50T
2个灯泡 型号为B50E
1个清洁垫 型号为B50R
1个充电装置 型号 B50L
1把螺丝刀
1份使用说明书
1个纸箱包装（也可以选择塑料箱包装）
Accessories配件

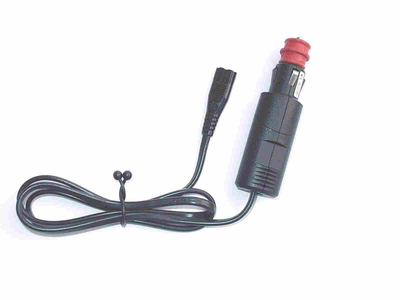

Charging Cable B 50 K
充电线 B 50 K For recharging of the ENGEL soldering unit
B 50 SET from DC 12V sources. 用于通过12V直流电源反复充电 The charging cable plug will fit all standard
low voltage (DC 12V) cigarette lighter sockets
in cars and boats fitted with negative ground. As the recharging current is very low at
approx. 0,15A there will be little drain only on
the car battery even when the motor is not running.
|  |
Service-Box B 50 B
· For secure storage of the ENGEL soldering unit B 50 SET in the tool bag用来安全存储焊枪于工具的盒子。 · A safe place to deposit the ENGEL soldering unit
B 50 SET during charging operation in cars and boats.在车上或船上进行充电时可以存放在盒子中。 · The indispensable, unbreakable case with the
useful safety-lock. · Soldering unit, soldering tip, srewdriver and cleaning pad fit into the Service Box.
|

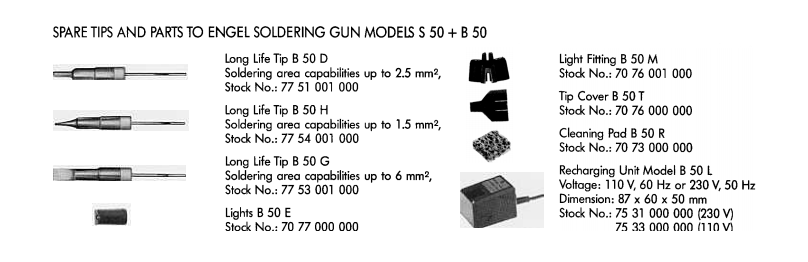

焊头和零件
